Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Release characteristicZ
Number of protected poles3
Rated current32A
Rated voltage440V
Number of poles (total)3
Rated impulse withstand voltage Uimp4kV
Built-in depth69mm
Rated insulation voltage Ui440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Voltage typeOther
Frequency50 - 60Hz
Current limiting class3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Power loss12.2W
Over voltage category3
Additional equipment possibleYes
Pollution degree3
Width in number of modular spacings3.0
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Flush-mounted installationNo
Explosion-proofNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Connectable conductor cross section solid-core0.75 - 35mm²
Ambient temperature during operating-40 - 75°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

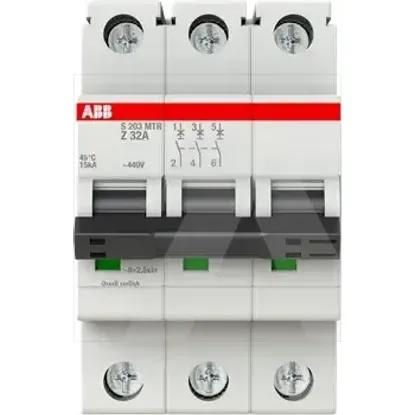

2CDS273447R0538 | S203MTR-Z32
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Release characteristic
Z
Number of protected poles
3
Rated current
32A
Rated voltage
440V
Number of poles (total)
3
Rated impulse withstand voltage Uimp
4kV
Built-in depth
69mm
Rated insulation voltage Ui
440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
Voltage type
Other
Frequency
50 .. 60Hz
Current limiting class
3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Power loss
12.2W
Over voltage category
3
Additional equipment possible
Pollution degree
3
Width in number of modular spacings
3.0
Concurrently switching neutral conductor
Degree of protection (IP)
IP20
Flush-mounted installation
Explosion-proof
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Connectable conductor cross section solid-core
0.75 .. 35mm²
Ambient temperature during operating
-40 .. 75°C
