Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth69mm
Voltage typeOther
Rated current63A
Frequency50 - 60Hz
Explosion-proofNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Concurrently switching neutral conductorNo
Over voltage category3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated voltage440V
Number of protected poles3
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Connectable conductor cross section solid-core0.75 - 35mm²
Flush-mounted installationNo
Release characteristicC
Connectable conductor cross section multi-wired0.75 - 25mm²
Current limiting class3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Power loss15.6W
Number of poles (total)3
Rated insulation voltage Ui440V
Rated impulse withstand voltage Uimp4kV
Degree of protection (IP)IP20
Pollution degree3
Ambient temperature during operating-40 - 75°C
Width in number of modular spacings3.0
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

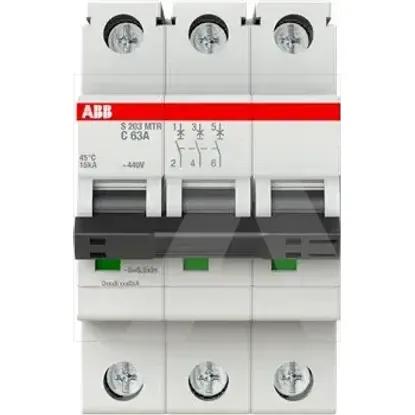

2CDS273447R0634 | S203MTR-C63
