Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeOther
Rated impulse withstand voltage Uimp4kV
Rated insulation voltage Ui440V
Power loss6.8W
Current limiting class3
Rated current2A
Rated voltage400V
Number of poles (total)4
Number of protected poles4
Built-in depth69mm
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Release characteristicD
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Pollution degree3
Over voltage category3
Concurrently switching neutral conductorNo
Flush-mounted installationNo
Ambient temperature during operating-40 - 70°C
Additional equipment possibleYes
Width in number of modular spacings4.0
Connectable conductor cross section solid-core0.75 - 35mm²
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired0.75 - 25mm²
Explosion-proofNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

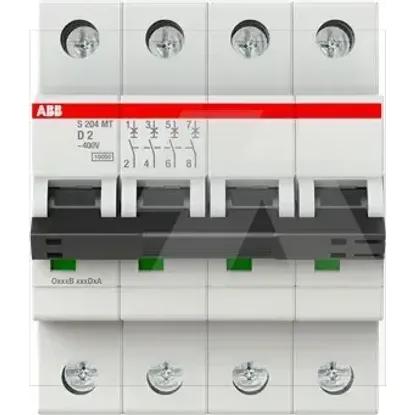

2CDS274445R0021 | S204MT-D2
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Voltage type
Other
Rated impulse withstand voltage Uimp
4kV
Rated insulation voltage Ui
440V
Power loss
6.8W
Current limiting class
3
Rated current
2A
Rated voltage
400V
Number of poles (total)
4
Number of protected poles
4
Built-in depth
69mm
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Frequency
50 .. 60Hz
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Release characteristic
D
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
Pollution degree
3
Over voltage category
3
Concurrently switching neutral conductor
Flush-mounted installation
Ambient temperature during operating
-40 .. 70°C
Additional equipment possible
Width in number of modular spacings
4.0
Connectable conductor cross section solid-core
0.75 .. 35mm²
Degree of protection (IP)
IP20
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Explosion-proof
