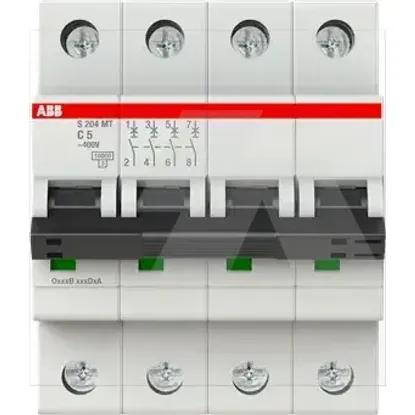

2CDS274445R0054 | S204MT-C5
Code: 2003568
ManufacturerABB
Catalog number2CDS274445R0054
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779124386
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Current limiting class3
Power loss-W
Over voltage category3
Connectable conductor cross section multi-wired0.75 - 25mm²
Concurrently switching neutral conductorNo
Built-in depth69mm
Rated insulation voltage Ui440V
Frequency50 - 60Hz
Degree of protection (IP)IP20
Connectable conductor cross section solid-core0.75 - 35mm²
Width in number of modular spacings4
Pollution degree3
Rated voltage400V
Voltage typeOther
Number of protected poles4
Explosion-proofNo
Additional equipment possibleYes
Flush-mounted installationNo
Ambient temperature during operating-40 - 70°C
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated current5A
Release characteristicC
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
