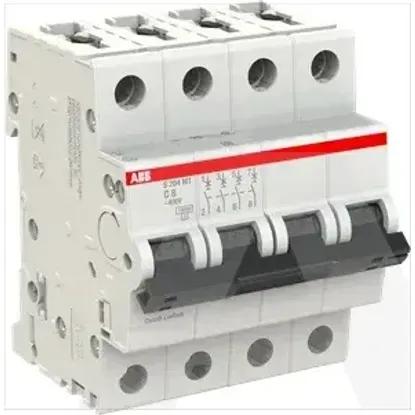

2CDS274445R0084 | S204MT-C8
Code: 2003574
ManufacturerABB
Catalog number2CDS274445R0084
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779124409
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Pollution degree3
Frequency50 - 60Hz
Width in number of modular spacings4
Rated voltage400V
Over voltage category3
Voltage typeOther
Current limiting class3
Built-in depth69mm
Rated insulation voltage Ui440V
Power loss6W
Connectable conductor cross section solid-core0.75 - 35mm²
Explosion-proofNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Flush-mounted installationNo
Number of protected poles4
Ambient temperature during operating-40 - 70°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Concurrently switching neutral conductorNo
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated impulse withstand voltage Uimp4kV
Degree of protection (IP)IP20
Rated current8A
Release characteristicC
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
