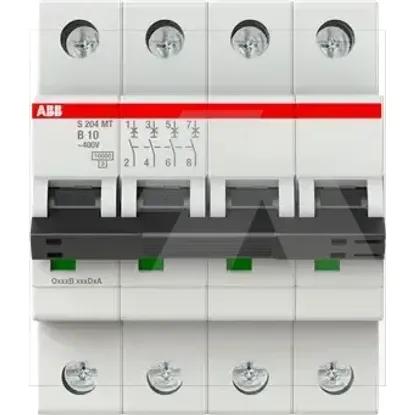

2CDS274445R0105 | S204MT-B10
Code: 2003579
ManufacturerABB
Catalog number2CDS274445R0105
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779123099
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Voltage typeOther
Connectable conductor cross section solid-core0.75 - 35mm²
Explosion-proofNo
Frequency50 - 60Hz
Number of protected poles4
Degree of protection (IP)IP20
Built-in depth69mm
Width in number of modular spacings4
Over voltage category3
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated voltage400V
Current limiting class3
Rated insulation voltage Ui440V
Power loss8.4W
Pollution degree3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Ambient temperature during operating-40 - 70°C
Concurrently switching neutral conductorNo
Flush-mounted installationNo
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated impulse withstand voltage Uimp4kV
Rated current10A
Release characteristicB
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
