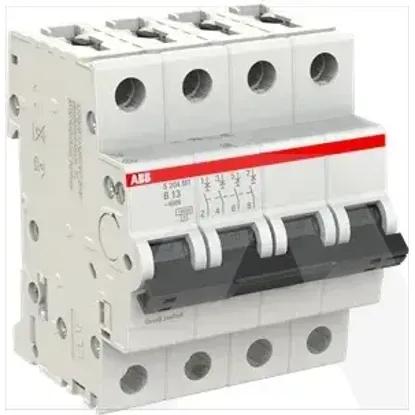

2CDS274445R0135 | S204MT-B13
Code: 2003583
ManufacturerABB
Catalog number2CDS274445R0135
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779123105
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Rated voltage400V
Voltage typeOther
Pollution degree3
Built-in depth69mm
Frequency50 - 60Hz
Power loss9.2W
Connectable conductor cross section solid-core0.75 - 35mm²
Ambient temperature during operating-40 - 70°C
Explosion-proofNo
Number of protected poles4
Current limiting class3
Connectable conductor cross section multi-wired0.75 - 25mm²
Additional equipment possibleYes
Concurrently switching neutral conductorNo
Width in number of modular spacings4
Degree of protection (IP)IP20
Rated insulation voltage Ui440V
Flush-mounted installationNo
Over voltage category3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated impulse withstand voltage Uimp4kV
Rated current13A
Release characteristicB
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
