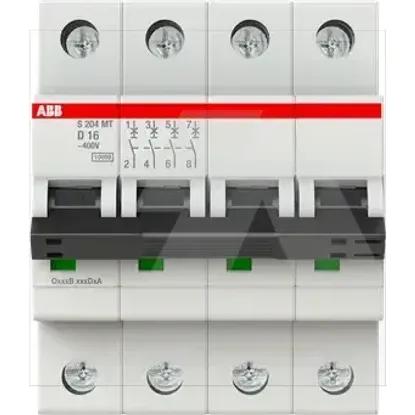

2CDS274445R0161 | S204MT-D16
Code: 2003589
ManufacturerABB
Catalog number2CDS274445R0161
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779125765
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Built-in depth69mm
Rated insulation voltage Ui440V
Explosion-proofNo
Connectable conductor cross section solid-core0.75 - 35mm²
Voltage typeOther
Over voltage category3
Degree of protection (IP)IP20
Current limiting class3
Pollution degree3
Width in number of modular spacings4
Connectable conductor cross section multi-wired0.75 - 25mm²
Power loss10W
Number of protected poles4
Concurrently switching neutral conductorNo
Frequency50 - 60Hz
Rated voltage400V
Additional equipment possibleYes
Ambient temperature during operating-40 - 70°C
Flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated current16A
Release characteristicD
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
