Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Release characteristicC
Number of protected poles4
Number of poles (total)4
Rated current20A
Built-in depth69mm
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Voltage typeOther
Rated insulation voltage Ui440V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated voltage400V
Rated impulse withstand voltage Uimp4kV
Power loss10W
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Current limiting class3
Pollution degree3
Width in number of modular spacings4.0
Concurrently switching neutral conductorNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Degree of protection (IP)IP20
Flush-mounted installationNo
Over voltage category3
Ambient temperature during operating-40 - 70°C
Additional equipment possibleYes
Connectable conductor cross section solid-core0.75 - 35mm²
Explosion-proofNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

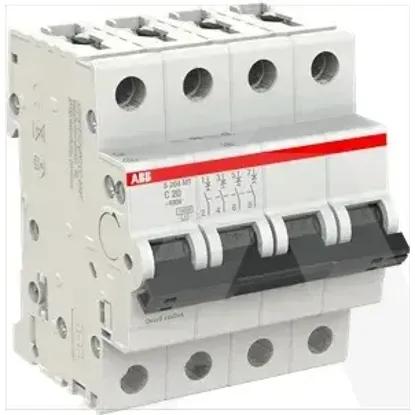

2CDS274445R0204 | S204MT-C20
