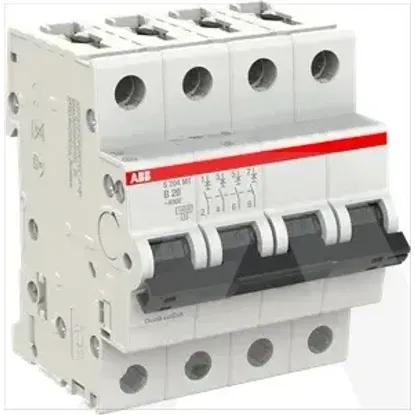

2CDS274445R0205 | S204MT-B20
Code: 2003595
ManufacturerABB
Catalog number2CDS274445R0205
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779123136
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Voltage typeOther
Built-in depth69mm
Rated insulation voltage Ui440V
Frequency50 - 60Hz
Rated voltage400V
Current limiting class3
Ambient temperature during operating-40 - 70°C
Concurrently switching neutral conductorNo
Over voltage category3
Connectable conductor cross section solid-core0.75 - 35mm²
Number of protected poles4
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Power loss10W
Width in number of modular spacings4
Additional equipment possibleYes
Explosion-proofNo
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Pollution degree3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Flush-mounted installationNo
Rated impulse withstand voltage Uimp4kV
Rated current20A
Release characteristicB
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
