Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Pollution degree3
Rated current25A
Voltage typeOther
Frequency50 - 60Hz
Release characteristicB
Current limiting class3
Built-in depth69mm
Width in number of modular spacings4.0
Over voltage category3
Rated voltage400V
Rated insulation voltage Ui440V
Explosion-proofNo
Number of protected poles4
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Ambient temperature during operating-40 - 70°C
Power loss12.8W
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleYes
Number of poles (total)4
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Connectable conductor cross section multi-wired0.75 - 25mm²
Connectable conductor cross section solid-core0.75 - 35mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

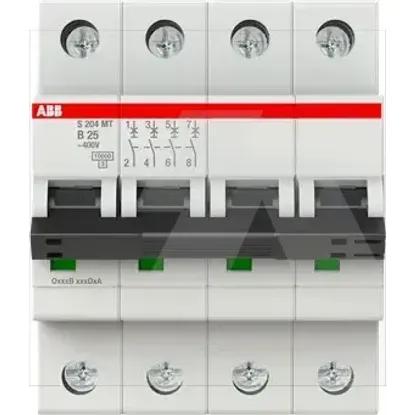

2CDS274445R0255 | S204MT-B25
