Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth69mm
Voltage typeOther
Rated current1.6A
Rated voltage440V
Frequency50 - 60Hz
Connectable conductor cross section solid-core0.75 - 35mm²
Release characteristicZ
Over voltage category3
Ambient temperature during operating-40 - 70°C
Connectable conductor cross section multi-wired0.75 - 25mm²
Explosion-proofNo
Current limiting class3
Number of protected poles4
Rated insulation voltage Ui440V
Pollution degree3
Width in number of modular spacings4.0
Degree of protection (IP)IP20
Flush-mounted installationNo
Concurrently switching neutral conductorNo
Power loss11.2W
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Number of poles (total)4
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

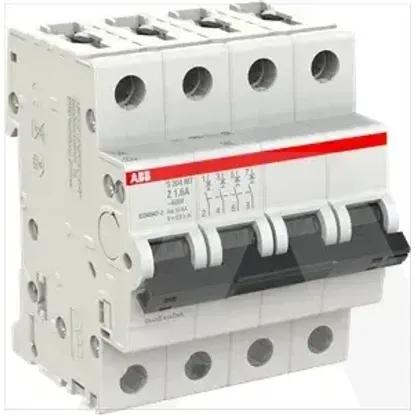

2CDS274445R0258 | S204MT-Z1,6
