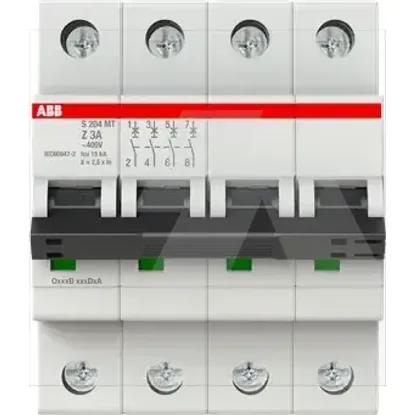

2CDS274445R0318 | S204MT-Z3
Code: 2003609
ManufacturerABB
Catalog number2CDS274445R0318
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779128391
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Built-in depth69mm
Voltage typeOther
Rated voltage440V
Frequency50 - 60Hz
Rated insulation voltage Ui440V
Pollution degree3
Width in number of modular spacings4
Current limiting class3
Degree of protection (IP)IP20
Ambient temperature during operating-40 - 70°C
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Flush-mounted installationNo
Concurrently switching neutral conductorNo
Explosion-proofNo
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
Number of protected poles4
Connectable conductor cross section solid-core0.75 - 35mm²
Power loss9.6W
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Over voltage category3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated current3A
Release characteristicZ
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
