Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated current32A
Rated impulse withstand voltage Uimp4kV
Number of protected poles4
Rated insulation voltage Ui440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Current limiting class3
Rated voltage400V
Voltage typeOther
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Release characteristicD
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Built-in depth69mm
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Power loss14.8W
Number of poles (total)4
Concurrently switching neutral conductorNo
Connectable conductor cross section solid-core0.75 - 35mm²
Flush-mounted installationNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Over voltage category3
Explosion-proofNo
Ambient temperature during operating-40 - 70°C
Additional equipment possibleYes
Width in number of modular spacings4.0
Degree of protection (IP)IP20
Pollution degree3
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

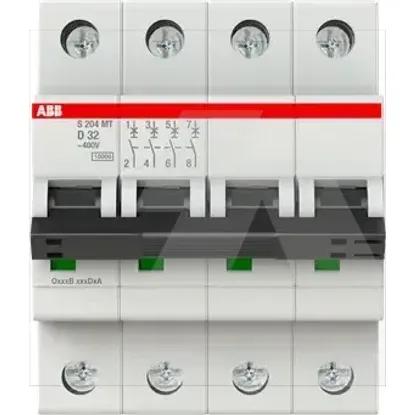

2CDS274445R0321 | S204MT-D32
