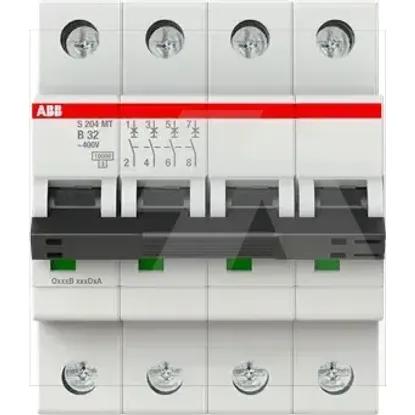

2CDS274445R0325 | S204MT-B32
Code: 2003612
ManufacturerABB
Catalog number2CDS274445R0325
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779123167
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Built-in depth69mm
Voltage typeOther
Rated voltage400V
Pollution degree3
Over voltage category3
Current limiting class3
Power loss14.8W
Explosion-proofNo
Frequency50 - 60Hz
Rated insulation voltage Ui440V
Width in number of modular spacings4
Concurrently switching neutral conductorNo
Connectable conductor cross section solid-core0.75 - 35mm²
Connectable conductor cross section multi-wired0.75 - 25mm²
Degree of protection (IP)IP20
Ambient temperature during operating-40 - 70°C
Number of protected poles4
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Flush-mounted installationNo
Rated current32A
Release characteristicB
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
