Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeOther
Rated current20A
Rated insulation voltage Ui440V
Release characteristicZ
Connectable conductor cross section solid-core0.75 - 35mm²
Degree of protection (IP)IP20
Power loss11.2W
Over voltage category3
Frequency50 - 60Hz
Ambient temperature during operating-40 - 70°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated voltage440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Concurrently switching neutral conductorNo
Explosion-proofNo
Built-in depth69mm
Connectable conductor cross section multi-wired0.75 - 25mm²
Number of poles (total)4
Current limiting class3
Number of protected poles4
Flush-mounted installationNo
Pollution degree3
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Width in number of modular spacings4.0
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

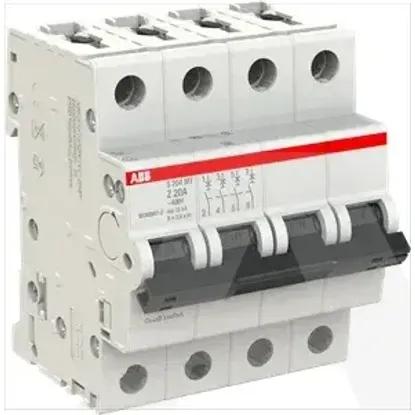

2CDS274445R0488 | S204MT-Z20
