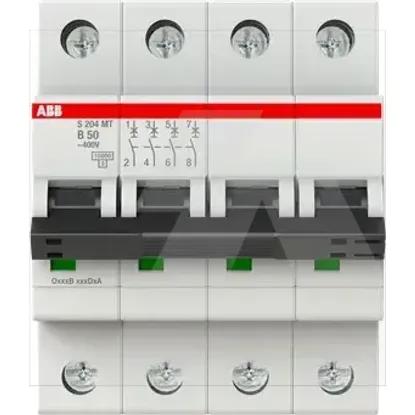

2CDS274445R0505 | S204MT-B50
Code: 2003639
ManufacturerABB
Catalog number2CDS274445R0505
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779123198
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Built-in depth69mm
Voltage typeOther
Connectable conductor cross section solid-core0.75 - 35mm²
Frequency50 - 60Hz
Explosion-proofNo
Current limiting class3
Rated voltage400V
Pollution degree3
Degree of protection (IP)IP20
Number of protected poles4
Rated insulation voltage Ui440V
Ambient temperature during operating-40 - 70°C
Concurrently switching neutral conductorNo
Over voltage category3
Connectable conductor cross section multi-wired0.75 - 25mm²
Power loss14.4W
Width in number of modular spacings4
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Additional equipment possibleYes
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated current50A
Release characteristicB
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
