Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth69mm
Voltage typeOther
Rated current3A
Frequency50 - 60Hz
Current limiting class3
Release characteristicC
Rated voltage440V
Rated insulation voltage Ui440V
Over voltage category3
Width in number of modular spacings4.0
Degree of protection (IP)IP20
Pollution degree3
Power loss5.5W
Number of protected poles4
Additional equipment possibleYes
Flush-mounted installationNo
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Concurrently switching neutral conductorNo
Explosion-proofNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section solid-core0.75 - 35mm²
Ambient temperature during operating-40 - 75°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

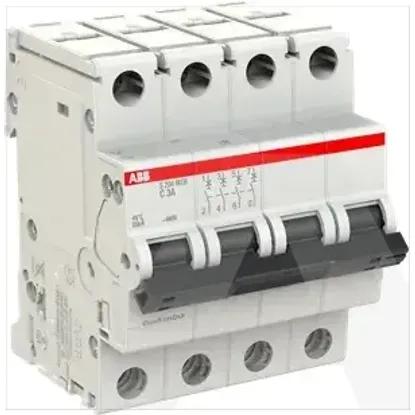

2CDS274447R0034 | S204MTR-C3
