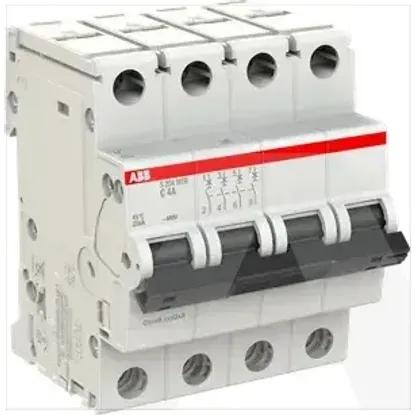

2CDS274447R0044 | S204MTR-C4
Code: 2003669
ManufacturerABB
Catalog number2CDS274447R0044
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779105781
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Rated voltage440V
Built-in depth69mm
Frequency50 - 60Hz
Rated insulation voltage Ui440V
Voltage typeOther
Current limiting class3
Over voltage category3
Connectable conductor cross section multi-wired0.75 - 25mm²
Pollution degree3
Rated impulse withstand voltage Uimp4kV
Explosion-proofNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Degree of protection (IP)IP20
Additional equipment possibleYes
Power loss5.5W
Number of protected poles4
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Width in number of modular spacings4
Connectable conductor cross section solid-core0.75 - 35mm²
Ambient temperature during operating-40 - 75°C
Concurrently switching neutral conductorNo
Rated current4A
Release characteristicC
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
