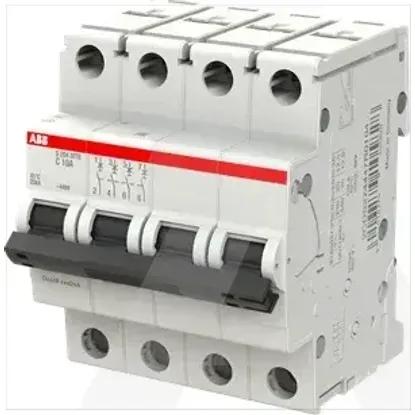

2CDS274447R0104 | S204MTR-C10
Code: 2003673
ManufacturerABB
Catalog number2CDS274447R0104
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779105828
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Rated insulation voltage Ui440V
Power loss8.5W
Built-in depth69mm
Rated voltage440V
Over voltage category3
Degree of protection (IP)IP20
Width in number of modular spacings4
Number of protected poles4
Pollution degree3
Current limiting class3
Frequency50 - 60Hz
Explosion-proofNo
Voltage typeOther
Flush-mounted installationNo
Concurrently switching neutral conductorNo
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Connectable conductor cross section multi-wired0.75 - 25mm²
Ambient temperature during operating-40 - 75°C
Connectable conductor cross section solid-core0.75 - 35mm²
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated current10A
Release characteristicC
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
