Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Release characteristicK
Voltage typeOther
Rated insulation voltage Ui440V
Built-in depth69mm
Frequency50 - 60Hz
Rated voltage440V
Rated current0.5A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Power loss4.5W
Number of protected poles4
Over voltage category3
Explosion-proofNo
Degree of protection (IP)IP20
Current limiting class3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Flush-mounted installationNo
Ambient temperature during operating-40 - 75°C
Pollution degree3
Width in number of modular spacings4.0
Connectable conductor cross section solid-core0.75 - 35mm²
Connectable conductor cross section multi-wired0.75 - 25mm²
Number of poles (total)4
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleYes
Concurrently switching neutral conductorNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

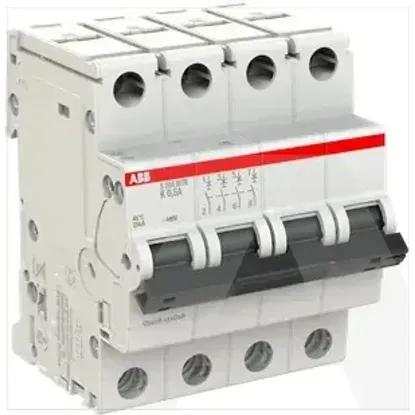

2CDS274447R0157 | S204MTR-K0,5
