Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth69mm
Voltage typeOther
Frequency50 - 60Hz
Rated insulation voltage Ui440V
Pollution degree3
Current limiting class3
Number of protected poles4
Rated voltage440V
Release characteristicC
Width in number of modular spacings4.0
Over voltage category3
Connectable conductor cross section solid-core0.75 - 35mm²
Power loss8.7W
Flush-mounted installationNo
Ambient temperature during operating-40 - 75°C
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired0.75 - 25mm²
Explosion-proofNo
Concurrently switching neutral conductorNo
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Additional equipment possibleYes
Rated current16A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

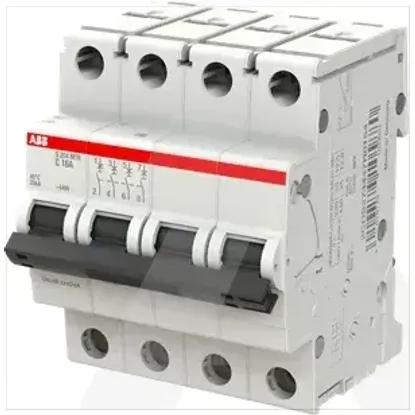

2CDS274447R0164 | S204MTR-C16
