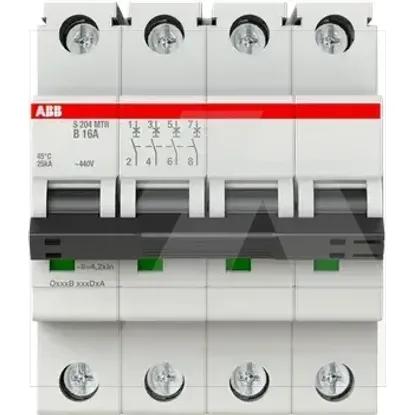

2CDS274447R0165 | S204MTR-B16
Code: 2003680
ManufacturerABB
Catalog number2CDS274447R0165
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779105897
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Connectable conductor cross section solid-core0.75 - 35mm²
Concurrently switching neutral conductorNo
Explosion-proofNo
Voltage typeOther
Built-in depth69mm
Number of protected poles4
Rated insulation voltage Ui440V
Width in number of modular spacings4
Power loss8.9W
Over voltage category3
Current limiting class3
Rated voltage440V
Frequency50 - 60Hz
Pollution degree3
Degree of protection (IP)IP20
Flush-mounted installationNo
Ambient temperature during operating-40 - 75°C
Connectable conductor cross section multi-wired0.75 - 25mm²
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated current16A
Release characteristicB
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
