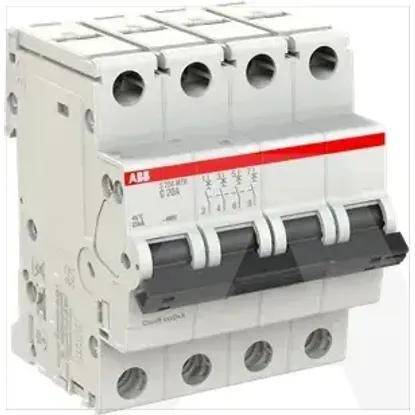

2CDS274447R0204 | S204MTR-C20
Code: 2003681
ManufacturerABB
Catalog number2CDS274447R0204
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779105903
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Built-in depth69mm
Over voltage category3
Voltage typeOther
Width in number of modular spacings4
Pollution degree3
Frequency50 - 60Hz
Rated insulation voltage Ui440V
Current limiting class3
Rated voltage440V
Explosion-proofNo
Power loss12.2W
Connectable conductor cross section multi-wired0.75 - 25mm²
Connectable conductor cross section solid-core0.75 - 35mm²
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Ambient temperature during operating-40 - 75°C
Flush-mounted installationNo
Number of protected poles4
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated current20A
Release characteristicC
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
