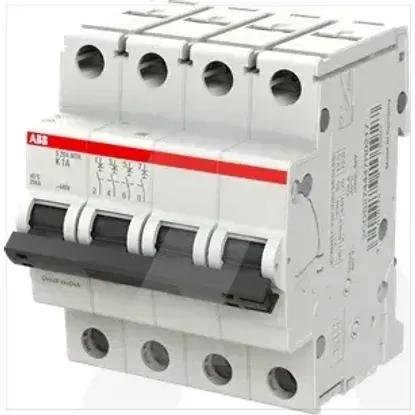

2CDS274447R0217 | S204MTR-K1
Code: 2003683
ManufacturerABB
Catalog number2CDS274447R0217
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779105927
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Built-in depth69mm
Explosion-proofNo
Degree of protection (IP)IP20
Power loss5.2W
Current limiting class3
Rated insulation voltage Ui440V
Over voltage category3
Rated voltage440V
Width in number of modular spacings4
Pollution degree3
Voltage typeOther
Frequency50 - 60Hz
Concurrently switching neutral conductorNo
Number of protected poles4
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Flush-mounted installationNo
Ambient temperature during operating-40 - 75°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Connectable conductor cross section solid-core0.75 - 35mm²
Rated current1A
Release characteristicK
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
