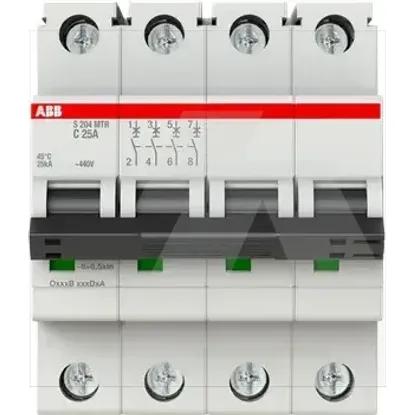

2CDS274447R0254 | S204MTR-C25
Code: 2003685
ManufacturerABB
Catalog number2CDS274447R0254
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779105941
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Over voltage category3
Current limiting class3
Frequency50 - 60Hz
Rated insulation voltage Ui440V
Width in number of modular spacings4
Built-in depth69mm
Voltage typeOther
Pollution degree3
Rated voltage440V
Concurrently switching neutral conductorNo
Explosion-proofNo
Power loss11.3W
Number of protected poles4
Degree of protection (IP)IP20
Connectable conductor cross section solid-core0.75 - 35mm²
Ambient temperature during operating-40 - 75°C
Flush-mounted installationNo
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated current25A
Release characteristicC
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
