Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Release characteristicZ
Voltage typeOther
Current limiting class3
Rated current1.6A
Built-in depth69mm
Frequency50 - 60Hz
Rated voltage440V
Rated insulation voltage Ui440V
Power loss11.2W
Number of protected poles4
Explosion-proofNo
Over voltage category3
Pollution degree3
Degree of protection (IP)IP20
Connectable conductor cross section solid-core0.75 - 35mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Flush-mounted installationNo
Additional equipment possibleYes
Number of poles (total)4
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Ambient temperature during operating-40 - 75°C
Connectable conductor cross section multi-wired0.75 - 25mm²
Width in number of modular spacings4.0
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

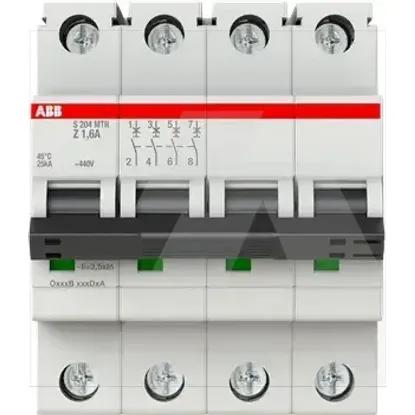

2CDS274447R0258 | S204MTR-Z1,6
