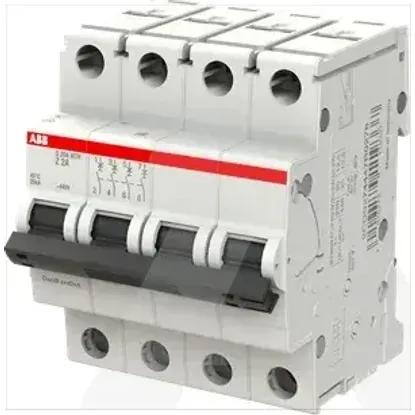

2CDS274447R0278 | S204MTR-Z2
Code: 2003690
ManufacturerABB
Catalog number2CDS274447R0278
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779119337
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Voltage typeOther
Width in number of modular spacings4
Over voltage category3
Frequency50 - 60Hz
Rated voltage440V
Current limiting class3
Number of protected poles4
Explosion-proofNo
Built-in depth69mm
Rated insulation voltage Ui440V
Degree of protection (IP)IP20
Power loss9.6W
Connectable conductor cross section multi-wired0.75 - 25mm²
Ambient temperature during operating-40 - 75°C
Concurrently switching neutral conductorNo
Connectable conductor cross section solid-core0.75 - 35mm²
Pollution degree3
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Flush-mounted installationNo
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated current2A
Release characteristicZ
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
