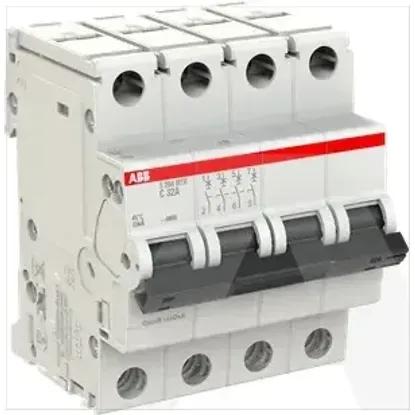

2CDS274447R0324 | S204MTR-C32
Code: 2003693
ManufacturerABB
Catalog number2CDS274447R0324
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779105989
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Power loss14.7W
Rated insulation voltage Ui440V
Over voltage category3
Pollution degree3
Width in number of modular spacings4
Explosion-proofNo
Current limiting class3
Built-in depth69mm
Rated voltage440V
Frequency50 - 60Hz
Voltage typeOther
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Degree of protection (IP)IP20
Additional equipment possibleYes
Concurrently switching neutral conductorNo
Connectable conductor cross section solid-core0.75 - 35mm²
Number of protected poles4
Ambient temperature during operating-40 - 75°C
Rated impulse withstand voltage Uimp4kV
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated current32A
Release characteristicC
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
