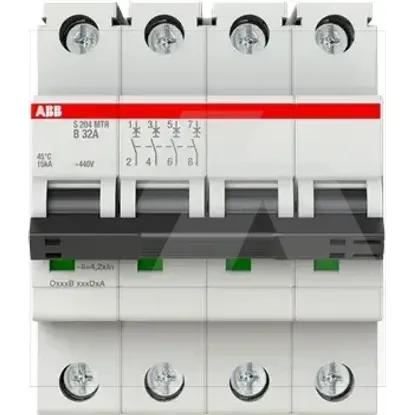

2CDS274447R0325 | S204MTR-B32
Code: 2003694
ManufacturerABB
Catalog number2CDS274447R0325
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779105996
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Over voltage category3
Built-in depth69mm
Rated voltage440V
Rated insulation voltage Ui440V
Power loss14.8W
Explosion-proofNo
Degree of protection (IP)IP20
Pollution degree3
Frequency50 - 60Hz
Width in number of modular spacings4
Voltage typeOther
Current limiting class3
Ambient temperature during operating-40 - 75°C
Concurrently switching neutral conductorNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Number of protected poles4
Connectable conductor cross section solid-core0.75 - 35mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Flush-mounted installationNo
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated current32A
Release characteristicB
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
