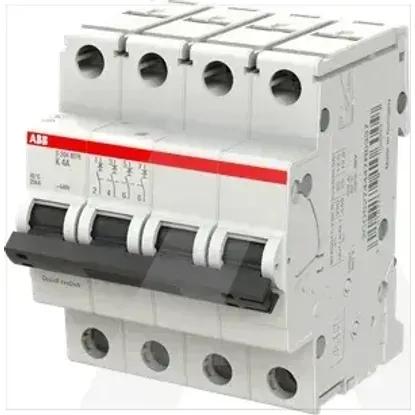

2CDS274447R0337 | S204MTR-K4
Code: 2003695
ManufacturerABB
Catalog number2CDS274447R0337
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779106009
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Built-in depth69mm
Voltage typeOther
Rated voltage440V
Rated insulation voltage Ui440V
Frequency50 - 60Hz
Current limiting class3
Power loss5.6W
Explosion-proofNo
Concurrently switching neutral conductorNo
Pollution degree3
Number of protected poles4
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Additional equipment possibleYes
Degree of protection (IP)IP20
Width in number of modular spacings4
Over voltage category3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Flush-mounted installationNo
Connectable conductor cross section solid-core0.75 - 35mm²
Connectable conductor cross section multi-wired0.75 - 25mm²
Ambient temperature during operating-40 - 75°C
Rated impulse withstand voltage Uimp4kV
Rated current4A
Release characteristicK
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
