Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeOther
Built-in depth69mm
Rated current6A
Rated voltage440V
Over voltage category3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Ambient temperature during operating-40 - 75°C
Pollution degree3
Frequency50 - 60Hz
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section solid-core0.75 - 35mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Release characteristicK
Number of protected poles4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Power loss6.4W
Current limiting class3
Additional equipment possibleYes
Number of poles (total)4
Explosion-proofNo
Width in number of modular spacings4.0
Rated insulation voltage Ui440V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Connectable conductor cross section multi-wired0.75 - 25mm²
Flush-mounted installationNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

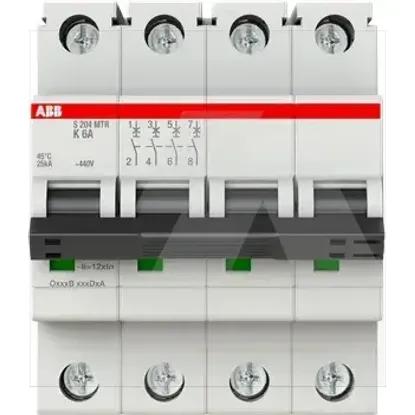

2CDS274447R0377 | S204MTR-K6
