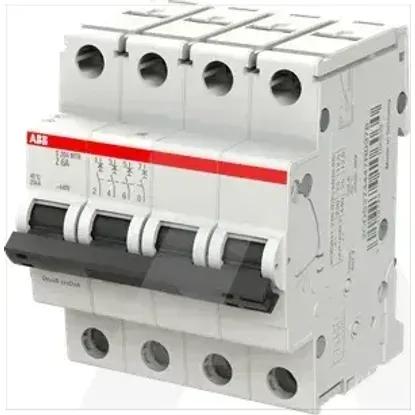

2CDS274447R0378 | S204MTR-Z6
Code: 2003698
ManufacturerABB
Catalog number2CDS274447R0378
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779106030
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Rated voltage440V
Voltage typeOther
Current limiting class3
Over voltage category3
Rated insulation voltage Ui440V
Frequency50 - 60Hz
Built-in depth69mm
Width in number of modular spacings4
Pollution degree3
Explosion-proofNo
Power loss10.4W
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Flush-mounted installationNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Additional equipment possibleYes
Connectable conductor cross section solid-core0.75 - 35mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Ambient temperature during operating-40 - 75°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Number of protected poles4
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated current6A
Release characteristicZ
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
