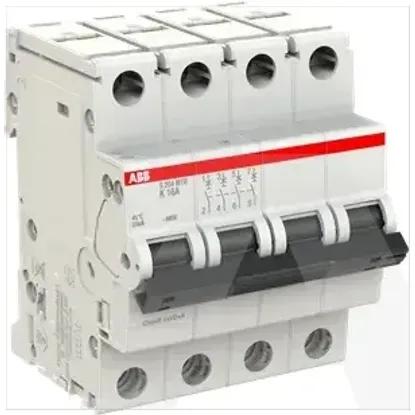

2CDS274447R0467 | S204MTR-K16
Code: 2003706
ManufacturerABB
Catalog number2CDS274447R0467
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779106115
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Voltage typeOther
Rated voltage440V
Built-in depth69mm
Frequency50 - 60Hz
Rated insulation voltage Ui440V
Current limiting class3
Over voltage category3
Pollution degree3
Flush-mounted installationNo
Connectable conductor cross section multi-wired0.75 - 25mm²
Degree of protection (IP)IP20
Additional equipment possibleYes
Number of protected poles4
Power loss8.1W
Connectable conductor cross section solid-core0.75 - 35mm²
Ambient temperature during operating-40 - 75°C
Explosion-proofNo
Width in number of modular spacings4
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated current16A
Release characteristicK
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
