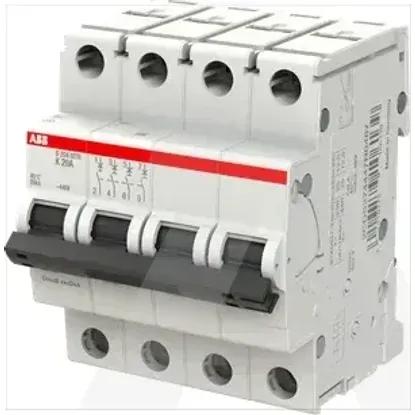

2CDS274447R0487 | S204MTR-K20
Code: 2003708
ManufacturerABB
Catalog number2CDS274447R0487
TypeMiniature circuit breaker (MCB)
CategoryMiniature circuit breaker (MCB)
EAN code4016779106139
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeOther
Explosion-proofNo
Rated voltage440V
Power loss12.1W
Width in number of modular spacings4
Pollution degree3
Frequency50 - 60Hz
Current limiting class3
Over voltage category3
Built-in depth69mm
Rated insulation voltage Ui440V
Connectable conductor cross section multi-wired0.75 - 25mm²
Connectable conductor cross section solid-core0.75 - 35mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Additional equipment possibleYes
Degree of protection (IP)IP20
Number of protected poles4
Ambient temperature during operating-40 - 75°C
Flush-mounted installationNo
Concurrently switching neutral conductorNo
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated current20A
Release characteristicK
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
