Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Frequency50 - 60Hz
Voltage typeOther
Rated current40A
Built-in depth69mm
Rated voltage440V
Current limiting class3
Rated insulation voltage Ui440V
Release characteristicK
Rated impulse withstand voltage Uimp4kV
Flush-mounted installationNo
Ambient temperature during operating-40 - 75°C
Number of protected poles4
Pollution degree3
Power loss16.4W
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Connectable conductor cross section multi-wired0.75 - 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Width in number of modular spacings4.0
Over voltage category3
Explosion-proofNo
Connectable conductor cross section solid-core0.75 - 35mm²
Degree of protection (IP)IP20
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

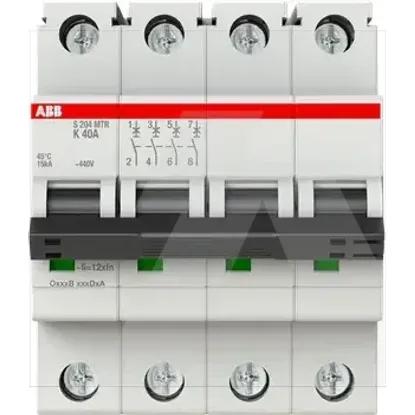

2CDS274447R0557 | S204MTR-K40
