Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Number of poles (total)4
Rated impulse withstand voltage Uimp4kV
Rated insulation voltage Ui440V
Rated voltage440V
Release characteristicK
Built-in depth69mm
Frequency50 - 60Hz
Number of protected poles4
Current limiting class3
Voltage typeOther
Rated current50A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Power loss14.2W
Flush-mounted installationNo
Pollution degree3
Over voltage category3
Width in number of modular spacings4.0
Connectable conductor cross section multi-wired0.75 - 25mm²
Explosion-proofNo
Ambient temperature during operating-40 - 75°C
Additional equipment possibleYes
Connectable conductor cross section solid-core0.75 - 35mm²
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

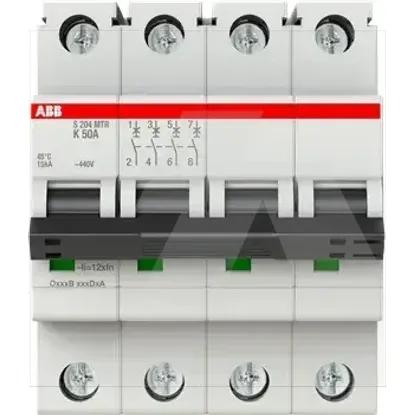

2CDS274447R0577 | S204MTR-K50
