Details
- •Relays
- •Device for monitoring of safety-related circuits
- •1 KOM
- •ABB
Technical specifications
Width22.5mm
Depth120mm
Height120mm
ModelOther
With start inputYes
Number of outputs, safety related, undelayed, semiconductors0
With detachable clampsYes
Release-delay20 - 20s
Number of outputs, safety related, undelayed, with contact4
With feedback circuitYes
Number of outputs, safety related, delayed, semiconductors0
Number of outputs, safety related, delayed, with contact0
Type of electric connectionOther
Number of outputs, signalling function, undelayed, with contact0
Number of outputs, signalling function, delayed, semiconductors0
Number of outputs, signalling function, delayed, with contact0
Number of outputs, signalling function, undelayed, semiconductors0
With approval according to ULYes
Rated control supply voltage Us at AC 50HZ85 - 265V
Rail mounting possibleYes
Type of safety according to IEC 61496-1None
Rated control supply voltage Us at AC 60HZ85 - 265V
Rated control supply voltage Us at DC120 - 375V
Suitable for monitoring of position switchesNo
With muting functionNo
Suitable for monitoring of emergency-stop circuitsYes
Suitable for monitoring of proximity switchesNo
Suitable for monitoring of magnetic switchesNo
Suitable for monitoring of optoelectronic protection equipmentNo
Suitable for monitoring of tactile sensorsNo
Performance level according to EN ISO 13849-1Level e
Evaluation inputs2-channel
Suitable for monitoring of valvesNo
Stop category according to IEC 602040
SIL according to IEC 615083
With approval for TÜVYes
Voltage type for actuatingAC
With approval for BG BIANo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

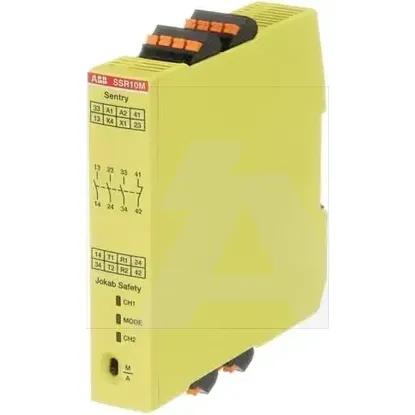

2TLA010050R0101 | SENTRY SSR10MP SAFETY RELAY
