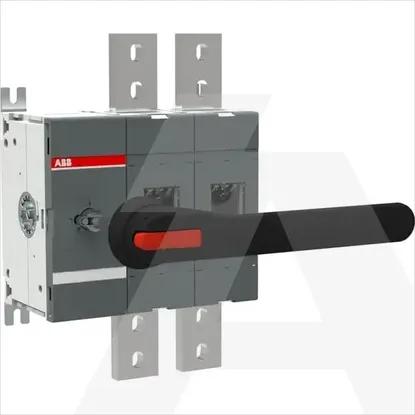

1SCA159246R1001 | OT1600E02P-135
Code: 2004521
ManufacturerABB
Catalog number1SCA159246R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019886930
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Height372mm
Width254.5mm
Depth148.5mm
Number of auxiliary contacts as normally open contact0
Type of control elementLong turning handle
Rated operation power at AC-3, 400 V-kW
Rated operation power at AC-23, 400 V-kW
Version as main switchYes
Type of electrical connection of main circuitBolt connection
Degree of protection (IP), front sideIP00
Number of switches1
Conditioned rated short-circuit current Iq-kA
Motor drive integratedNo
Number of auxiliary contacts as normally closed contact0
Version as emergency stop installationNo
Width in number of modular spacings-
InterlockableYes
Version as maintenance-/service switchYes
Number of auxiliary contacts as change-over contact0
Version as safety switchNo
Rated operating voltage- - -V
Rated short-time withstand current lcw-kA
Suitable for front mounting 4-holeNo
Suitable for floor mountingNo
Colour control elementBlack
Suitable for distribution board installationYes
Suitable for front mounting centreNo
Rated permanent current at AC-23, 400 V-A
With pre-assembled cablingNo
Suitable for intermediate mountingNo
Switching power at 400 V-kW
Motor drive optionalNo
Rated permanent current at AC-21, 400 V-A
Voltage release optionalNo
Device constructionBuilt-in device fixed built-in technique
Version as reversing switchNo
Rated permanent current Iu-A
Number of poles2
Max. rated operation voltage Ue AC-V
