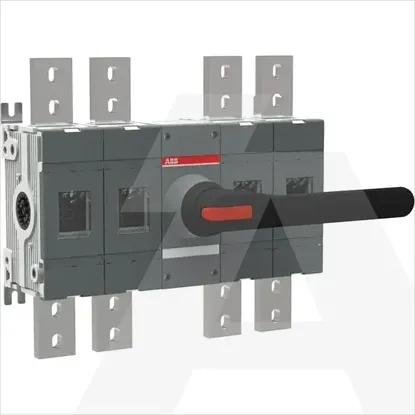

1SCA159248R1001 | OT1600E22K-135
Code: 2004522
ManufacturerABB
Catalog number1SCA159248R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019886954
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Width414.5mm
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally closed contact0
Height372mm
Depth148.5mm
Version as safety switchNo
Version as maintenance-/service switchYes
Rated operating voltage- - -V
Motor drive integratedNo
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as change-over contact0
Suitable for front mounting centreNo
Colour control elementBlack
Width in number of modular spacings-
Version as emergency stop installationNo
Type of control elementLong turning handle
Type of electrical connection of main circuitBolt connection
Suitable for intermediate mountingNo
Rated short-time withstand current lcw-kA
Rated operation power at AC-23, 400 V-kW
InterlockableYes
Suitable for distribution board installationYes
Suitable for front mounting 4-holeNo
Version as main switchYes
Degree of protection (IP), front sideIP00
Suitable for floor mountingNo
Voltage release optionalNo
Motor drive optionalNo
Number of switches1
Switching power at 400 V-kW
Version as reversing switchNo
With pre-assembled cablingNo
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-23, 400 V-A
Rated permanent current at AC-21, 400 V-A
Rated permanent current Iu-A
Number of poles4
Max. rated operation voltage Ue AC-V
