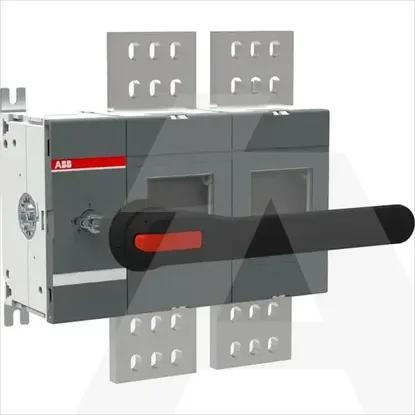

1SCA160394R1001 | OT2500E02P-135
Code: 2004527
ManufacturerABB
Catalog number1SCA160394R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019901800
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Depth145.5mm
Height376.5mm
Number of auxiliary contacts as normally open contact0
Width346.5mm
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V-kW
Degree of protection (IP), front sideIP00
Width in number of modular spacings-
Number of switches1
Conditioned rated short-circuit current Iq-kA
Motor drive integratedNo
Rated operating voltage- - -V
Number of auxiliary contacts as change-over contact0
InterlockableYes
Version as safety switchNo
Version as emergency stop installationNo
Version as main switchYes
Type of electrical connection of main circuitBolt connection
Type of control elementLong turning handle
Rated operation power at AC-23, 400 V-kW
Suitable for floor mountingNo
Version as maintenance-/service switchYes
Rated short-time withstand current lcw-kA
Suitable for distribution board installationYes
Colour control elementBlack
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingNo
Rated permanent current at AC-21, 400 V-A
Switching power at 400 V-kW
With pre-assembled cablingNo
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-23, 400 V-A
Voltage release optionalNo
Motor drive optionalNo
Version as reversing switchNo
Rated permanent current Iu-A
Number of poles2
Max. rated operation voltage Ue AC-V
