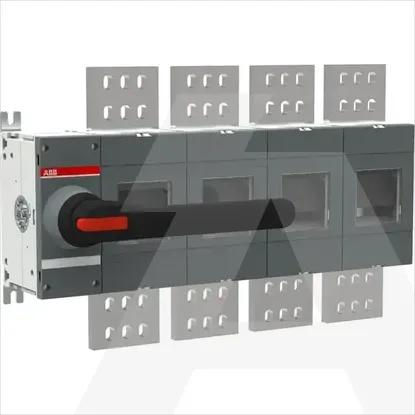

1SCA160396R1001 | OT2500E04K-135
Code: 2004529
ManufacturerABB
Catalog number1SCA160396R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019901824
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Rated operating voltage- - -V
Rated operation power at AC-3, 400 V-kW
Depth145.5mm
Width598.5mm
Number of auxiliary contacts as normally open contact0
Height376.5mm
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq-kA
Degree of protection (IP), front sideIP00
Width in number of modular spacings-
InterlockableYes
Version as safety switchNo
Colour control elementBlack
Suitable for front mounting 4-holeNo
Version as maintenance-/service switchYes
Suitable for front mounting centreNo
Voltage release optionalNo
Version as emergency stop installationNo
Motor drive integratedNo
Rated operation power at AC-23, 400 V-kW
Type of control elementLong turning handle
Type of electrical connection of main circuitBolt connection
Suitable for floor mountingNo
Number of auxiliary contacts as change-over contact0
Suitable for distribution board installationYes
Rated short-time withstand current lcw-kA
Motor drive optionalNo
Suitable for intermediate mountingNo
Version as main switchYes
Device constructionBuilt-in device fixed built-in technique
Number of switches1
Rated permanent current at AC-21, 400 V-A
Version as reversing switchNo
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V-A
Switching power at 400 V-kW
Rated permanent current Iu-A
Number of poles4
Max. rated operation voltage Ue AC-V
