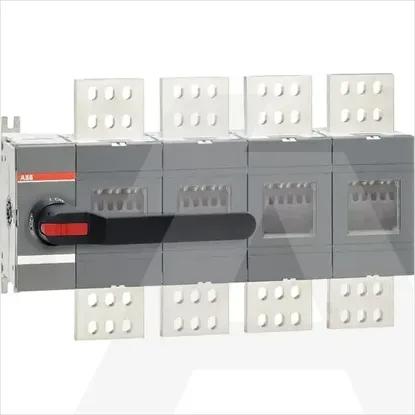

1SCA160397R1001 | OT2500E04P-135
Code: 2004530
ManufacturerABB
Catalog number1SCA160397R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019901831
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Depth145.5mm
Height376.5mm
Width598.5mm
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Degree of protection (IP), front sideIP00
Rated operation power at AC-23, 400 V-kW
Number of switches1
InterlockableYes
Type of electrical connection of main circuitBolt connection
Motor drive integratedNo
Suitable for front mounting 4-holeNo
Conditioned rated short-circuit current Iq-kA
Version as emergency stop installationNo
Version as maintenance-/service switchYes
Suitable for front mounting centreNo
Number of auxiliary contacts as change-over contact0
Colour control elementBlack
Width in number of modular spacings-
Suitable for floor mountingNo
Type of control elementLong turning handle
Version as main switchYes
Rated operating voltage- - -V
Rated short-time withstand current lcw-kA
Version as safety switchNo
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Motor drive optionalNo
Switching power at 400 V-kW
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-21, 400 V-A
Rated permanent current at AC-23, 400 V-A
Version as reversing switchNo
Voltage release optionalNo
With pre-assembled cablingNo
Rated permanent current Iu-A
Number of poles4
Max. rated operation voltage Ue AC-V
