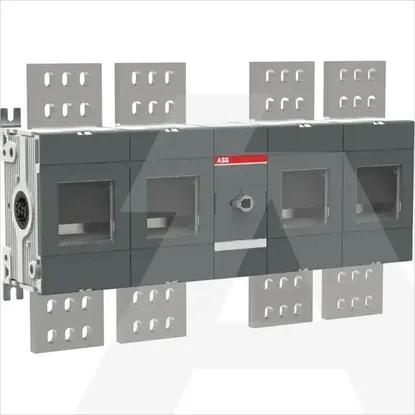

1SCA160398R1001 | OT2500E22-135
Code: 2004531
ManufacturerABB
Catalog number1SCA160398R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019901848
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Depth145.5mm
Version as emergency stop installationNo
Number of auxiliary contacts as normally closed contact0
Type of control elementOther
Width in number of modular spacings-
Height376.5mm
Version as maintenance-/service switchYes
Rated operation power at AC-3, 400 V-kW
Width598.5mm
Number of switches1
Number of auxiliary contacts as change-over contact0
Version as main switchYes
Conditioned rated short-circuit current Iq-kA
Type of electrical connection of main circuitBolt connection
InterlockableYes
Motor drive integratedNo
Rated operating voltage- - -V
Version as safety switchNo
Degree of protection (IP), front sideIP00
Rated operation power at AC-23, 400 V-kW
Rated permanent current at AC-21, 400 V-A
Rated short-time withstand current lcw-kA
Suitable for front mounting centreNo
Device constructionBuilt-in device fixed built-in technique
Version as reversing switchNo
Suitable for intermediate mountingNo
Motor drive optionalNo
Switching power at 400 V-kW
Suitable for front mounting 4-holeNo
Suitable for distribution board installationYes
Voltage release optionalNo
Suitable for floor mountingNo
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V-A
Rated permanent current Iu-A
Number of poles4
Max. rated operation voltage Ue AC-V
