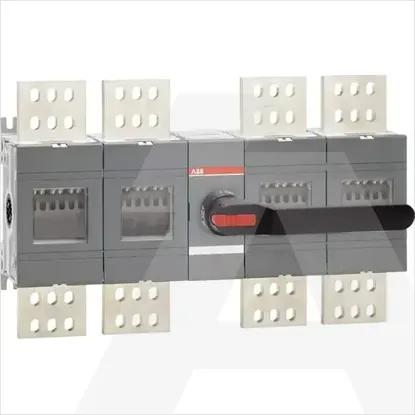

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Version as reversing switchNo
Version as main switchYes
Version as safety switchNo
Version as emergency stop installationNo
Rated permanent current at AC-21, 400 V-A
Rated permanent current at AC-23, 400 V-A
Version as maintenance-/service switchYes
Number of switches1
Rated operation power at AC-23, 400 V-kW
Rated operation power at AC-3, 400 V-kW
Rated permanent current Iu-A
Max. rated operation voltage Ue AC-V
Switching power at 400 V-kW
Conditioned rated short-circuit current Iq-kA
Rated operating voltage- - -V
Rated short-time withstand current lcw-kA
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Motor drive integratedNo
Number of poles4
Voltage release optionalNo
Number of auxiliary contacts as change-over contact0
Motor drive optionalNo
Device constructionBuilt-in device fixed built-in technique
Suitable for distribution board installationYes
Type of control elementLong turning handle
Suitable for floor mountingNo
Degree of protection (IP), front sideIP00
With pre-assembled cablingNo
Colour control elementBlack
Type of electrical connection of main circuitBolt connection
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingNo
Width598.5mm
Suitable for front mounting centreNo
InterlockableYes
Depth145.5mm
Height376.5mm
Width in number of modular spacings-
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA160400R1001 | OT2500E22P-135
