Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Overload release current setting- - -A
Adjustment range short-term delayed short-circuit release- - -A
Adjustment range undelayed short-circuit release- - -A
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz100kA
Integrated earth fault protectionNo
Device constructionBuilt-in device fixed built-in technique
DIN rail (top hat rail) mounting optionalYes
Suitable for DIN rail (top hat rail) mountingNo
Rated permanent current Iu125A
With switched-off indicatorNo
Number of poles3
Type of electrical connection of main circuitBolt connection
Rated voltage240 - 600V
Type of control elementToggle
Complete device with protection unitNo
Position of connection for main current circuitFront side
Degree of protection (IP)IP20
With under voltage releaseNo
Motor drive integratedNo
Motor drive optionalYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

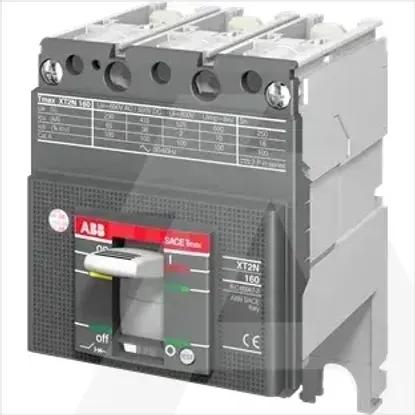

1SDA075633R1 | XT2L 125 BREAKING PART 3P F F UL/CSA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power circuit-breaker for trafo/generator/installation protection
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Overload release current setting
- .. -A
Adjustment range short-term delayed short-circuit release
- .. -A
Adjustment range undelayed short-circuit release
- .. -A
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
100kA
Integrated earth fault protection
Device construction
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional
Suitable for DIN rail (top hat rail) mounting
Rated permanent current Iu
125A
With switched-off indicator
Number of poles
3
Type of electrical connection of main circuit
Bolt connection
Rated voltage
240 .. 600V
Type of control element
Toggle
Complete device with protection unit
Position of connection for main current circuit
Front side
Degree of protection (IP)
IP20
With under voltage release
Motor drive integrated
Motor drive optional
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
