Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu250A
Overload release current setting- - -A
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Number of poles3
Rated voltage240 - 600V
Position of connection for main current circuitFront side
Device constructionBuilt-in device fixed built-in technique
Motor drive integratedNo
Degree of protection (IP)IP20
Adjustment range undelayed short-circuit release- - -A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz100kA
Integrated earth fault protectionNo
Adjustment range short-term delayed short-circuit release- - -A
With switched-off indicatorNo
With under voltage releaseNo
DIN rail (top hat rail) mounting optionalYes
Suitable for DIN rail (top hat rail) mountingNo
Type of control elementToggle
Type of electrical connection of main circuitBolt connection
Complete device with protection unitNo
Motor drive optionalYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

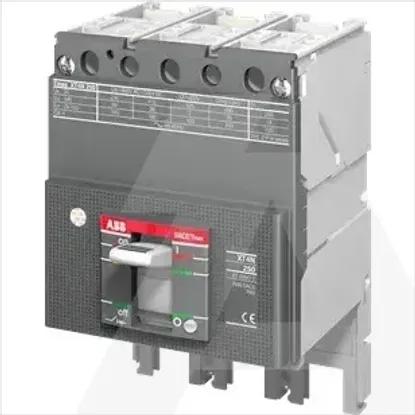

1SDA075643R1 | XT4L 250 BREAKING PART 3P F F UL/CSA
