Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
With integrated under voltage releaseNo
Rated permanent current Iu25A
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Power loss0.10W
Motor drive integratedNo
Degree of protection (IP)IP20
Rated voltage690 - 690V
Overload release current setting- - -A
Number of poles4
Position of connection for main current circuitFront side
Type of electrical connection of main circuitBolt connection
Number of auxiliary contacts as change-over contact0
Adjustment range short-term delayed short-circuit release- - -A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz-kA
Suitable for DIN rail (top hat rail) mountingNo
Adjustment range undelayed short-circuit release- - -A
Type of control elementToggle
With switched-off indicatorNo
Motor drive optionalYes
Complete device with protection unitYes
Device constructionBuilt-in device fixed built-in technique
DIN rail (top hat rail) mounting optionalNo
Integrated earth fault protectionNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

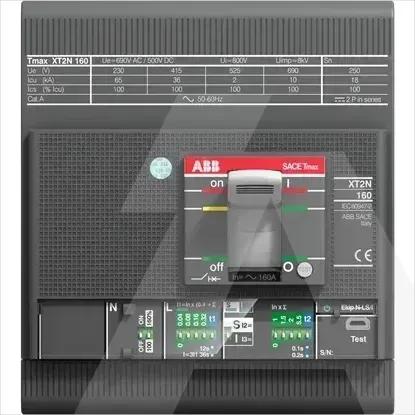

1SDA123226R1 | XT2V 125 EKIPDIPLSI IN25A 4PFF UL/CSA
