Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •ABB
Technical specifications
With integrated under voltage releaseNo
Overload release current setting- - -A
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu25A
Rated voltage690 - 690V
Number of poles3
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally closed contact0
Power loss0.10W
Degree of protection (IP)IP20
Motor drive integratedNo
Position of connection for main current circuitFront side
Type of electrical connection of main circuitBolt connection
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz-kA
With switched-off indicatorNo
Adjustment range short-term delayed short-circuit release- - -A
Adjustment range undelayed short-circuit release- - -A
Type of control elementToggle
Suitable for DIN rail (top hat rail) mountingNo
Motor drive optionalYes
Device constructionBuilt-in device fixed built-in technique
DIN rail (top hat rail) mounting optionalNo
Complete device with protection unitYes
Integrated earth fault protectionNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

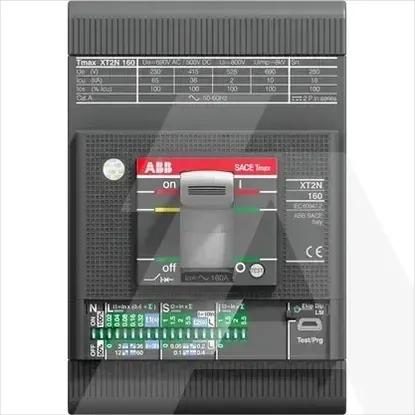

1SDA123229R1 | XT2V 125 EKIPDIPLSIG IN25A 3PFF UL/CSA
