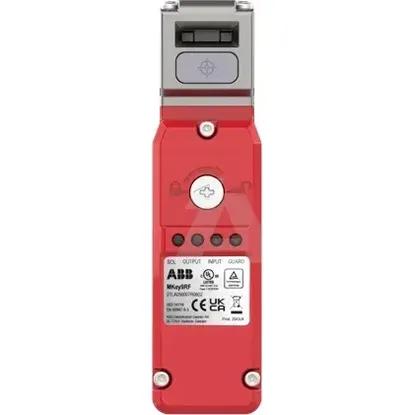

2TLA050007R0602 | MKEY9RF NO KEY PLASTIC M20
Code: 2004685
ManufacturerABB
Catalog number2TLA050007R0602
TypePosition switch with guard locking
EAN code7350024486834
Details
- •Sensors
- •Position switch with guard locking
- •1 KOM
- •ABB
Technical specifications
Rated operation current Ie at DC-13, 230 V-A
Type of interface for safety communicationOther
Type of switching contactSlow-action switch
Type of interfaceOther
With status indicationYes
Construction type housingSpecial construction
Rated control supply voltage Us magnet drive at AC 60 Hz- - -V
Number of safety auxiliary contacts-
Coating housingUncoated
Type of electric connectionOther
Material housingPlastic
Rated control supply voltage Us magnet drive at AC 50 Hz- - -V
Suitable for safety functionsYes
Rated control supply voltage Us magnet drive at DC24 - 24V
Rated operation current Ie at AC-15, 24 V-A
Rated operation current Ie at AC-15, 125 V-A
With escape releaseNo
Rated operation current Ie at DC-13, 24 V-A
Width sensor46mm
With auxiliary releaseYes
Length of sensor51mm
Rated operation current Ie at DC-13, 125 V-A
Ambient temperature during operating-25 - 40°C
Degree of protection (NEMA)1
Number of contacts as normally open contact0
Number of contacts as change-over contact-
Number of contacts as normally closed contact0
Height of sensor176mm
Rated operation current Ie at AC-15, 230 V-A
Degree of protection (IP)IP67
Guard locking force2000N
Type of guard lockingOperating current principle
